AJAX Socket - Intelligens dugalj, energiafigyelővel

Ár:
27.265 Ft + ÁFA ( 34.627 Ft )
Szín
Menny.:db
Egységár: 34.626,55 Ft/
Cikkszám: AJAXSocketWH
Gyártó cikkszám: 13305.34.WH1
Elérhetőség: Raktáron
Átlagos értékelés: Nem értékelt
Gyártó: AJAX

Leírás és Paraméterek

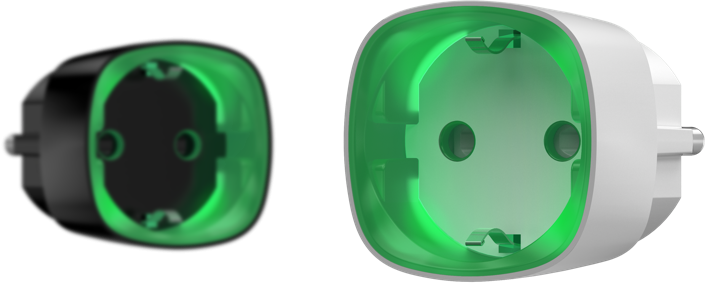

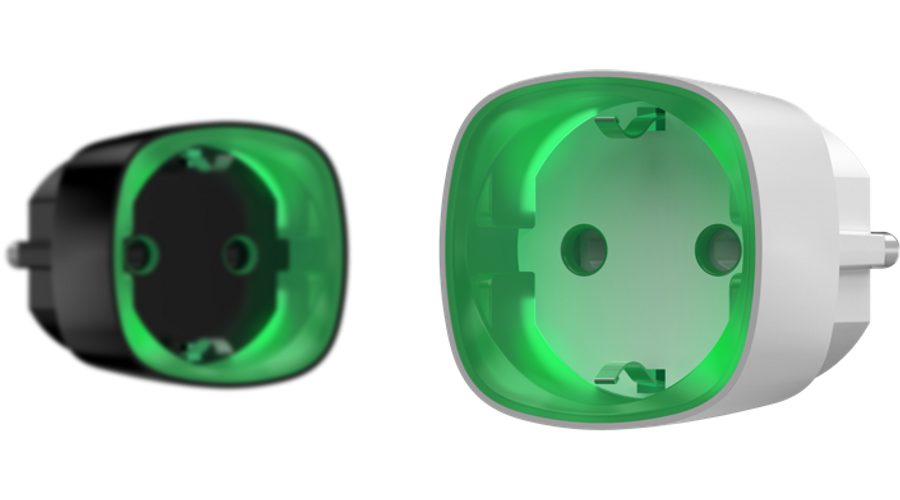

Ajax Socket - Vezeték nélküli intelligens dugaszolóaljzat, energiafigyelővel. Fehér szín


Classification Smart socket
Device type Remote-controlled
Installation method In outlet
Compatibility with hubs All hubs
Compatibility with range extenders
All radio signal range extenders
Actuating element
Electromagnetic relay
Service life
At least 200,000 switches
Power supply voltage range 110–230 V~ ± 10%; 50/60 Hz
Output power (resistive load at 230 V)
Up to 2.5 kW
Device energy consumption
≤ 1 W
Maximum current protection
Yes,

11 A if the protection is turned on
13 A if the protection is turned off
Maximum temperature protection
Yes, +85°С

The socket turns off automatically if the temperature is exceed
Overvoltage protection Yes,

min — 184 V~
max — 253 V~
Electric shock protection class
Class I (with grounding terminal)
Energy consumption parameter check Yes (current, voltage, power consumption)
Load indicator
Yes
Maximum load current 11 A (continuous)
13 A (up to 5 sec)
Alarm signal delivery time
0.15 sec
Load indicator
Yes

The option of adjusting the brightness of the LED frame of the device (high or low)
Operation modes
Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020)
Bistable
Contact state (firmware version 5.54.1.0 or higher)
Normally open
Normally closed
LED indication Adjustable (LED frame, 7 colours)
Adjustable pulse duration (firmware version 5.54.1.0 or higher)
0.5 to 255 sec
Jeweller radio technology
Communication range with the central unit — up to 1,100 m in an open space
Two-way communication between devices

Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)

Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector ping interval: 12–300 s
Anti-sabotage Protection against forgery
Jamming detection
Remote setting and testing +
Operating temperature range From 0°С to +40°С
Operating humidity Up to 75%
Ingress protection
IP20
Overall dimensions 65.5 × 45 × 45 mm (with plug)
Weight
58 g
Warranty
24 months
Service life
10 years
