AJAX vhf Bridge - Rendszerintegrációs modul

Ár:
47.966 Ft + ÁFA ( 60.917 Ft )
Szín
Menny.:db
Cikkszám: AJAXvhfBridgeWH
Gyártó cikkszám: 25353.92.WH1
Elérhetőség: Raktáron
Átlagos értékelés: Nem értékelt
Gyártó: AJAX

Leírás és Paraméterek

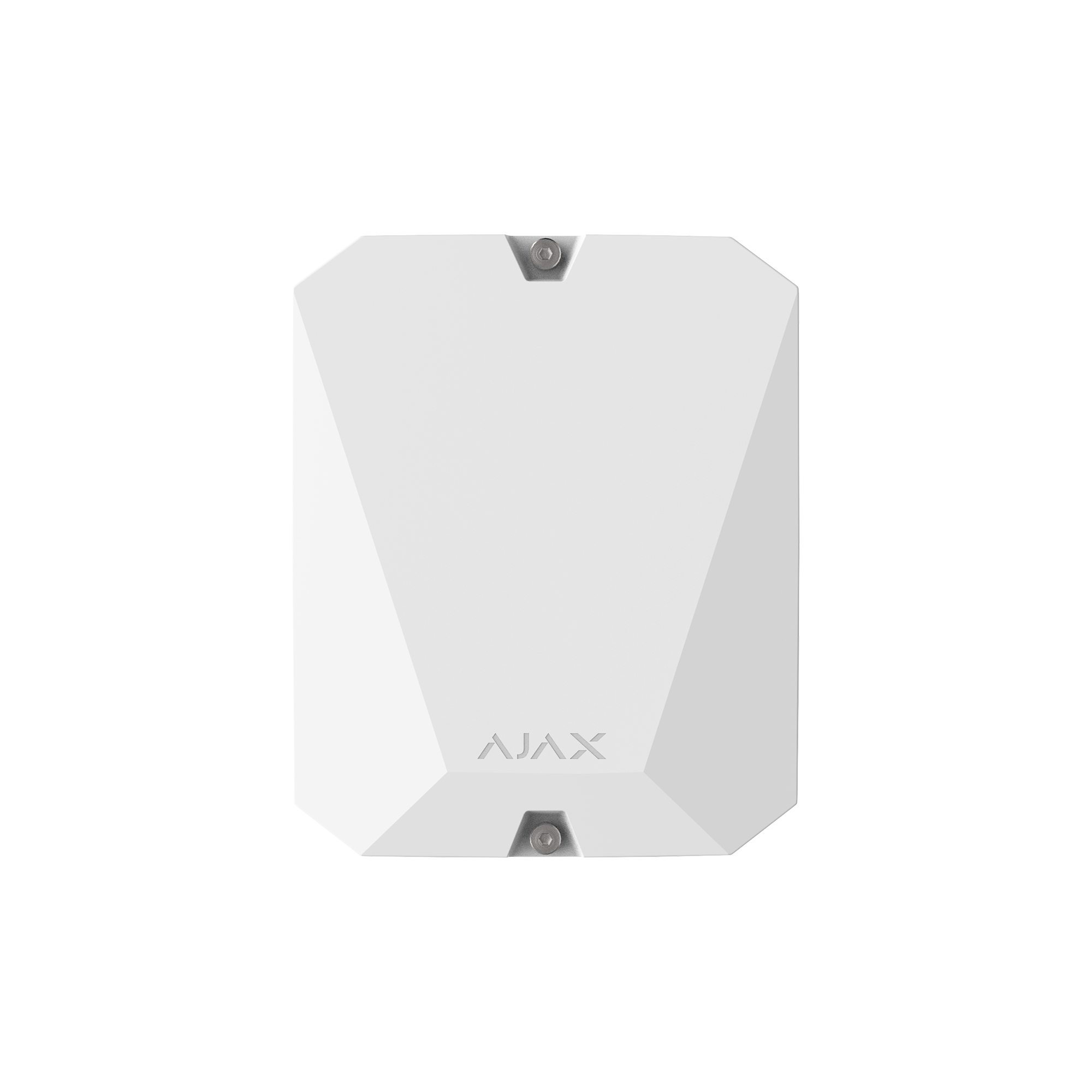

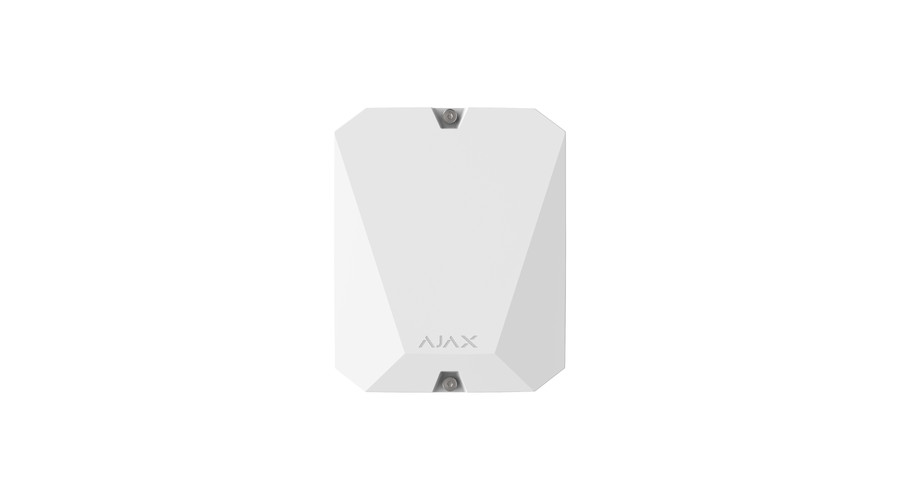

Ajax vhfBridge rendszerintegrációs modul - Fehér szín

Colour

White and black

Classification

Transponder for communication with the monitoring station via a VHF transmitter

Installation

Indoors

Number of potential outputs

8

Output types

Positive trip and negative trip (depends on the settings)

Transmission types

Pulse and bistable (depends on the settings)

Compatible with Ajax central units

Operates with Hub 2, Hub Plus, Hub 2 Plus

Compatible with Ajax range extenders

+

Compatibility with third-party VHF radio transmitters

vhfBridge connects to any VHF transmitter with relay inputs



Recommended models

Support for photo verification of alarms

No

Primary power supply

100–240 V, 50/60 Hz

Backup power supply

12 V DC, up to 75 hours of power for a transponder and a transmitter

Supported battery type

12 V battery with a full charge cycle of up to 30 hours.



The maximum battery size installed in the casing should be 150 × 64 × 94 mm

Recommended battery type

12 V battery with a capacity of 4 Ah or 7 Ah



Backup battery is not included in the set

VHF transmitter power

12 V DC, 2 A

Anti-sabotage

Protecting against forgery

Jamming notifications

Tampers against opening and removal

Backup battery

Jeweller radio protocol

Communication range — up to 1,800 meters in a line of sight

Two-sided communication between devices

Operating frequencies: 868.0–868.6 MHz or 868.7 – 869.2 MHz (depending on the region of sale)

Auto-regulated radio signal power: ≤ 25 mW

Blocking encryption based on the AES algorithm

Detector ping interval: 12–300 seconds

Frequency hopping



Learn more about Jeweller

Maximum radio signal power

≤ 25 mW

Protection class

IP50

Operating temperature range

From −10°C to +40°C

Operating humidity

Up to 75%

Overall dimensions

196 × 238 × 100 mm (with casing)

145 × 89 × 51 mm (without casing)

Weight

840 g (with casing)

165 g (without casing)

Warranty

Warranty service for 24 months from the date of sale.



Learn more

Complete set

vhfBridge

Power cable

12 V battery connection cable

Installation kit

Casing (depends on a set)

Quick start guide

Lifespan

10 years
